TJ40H manual control valve
手動調節閥介紹
TJ40H手動調節閥及自鎖手動調節閥主要用于城市集中供熱、區域供熱、循環水工程、熱電廠管網和制冷空調等工程中，具有截止、節流和調節流量的作用，可取代節流孔板，是一種改變孔徑的節流裝置。
手動調節閥設計安裝標準
產品型號：TJ/S40/10H-16、25
公稱通徑：DN15~500
法蘭標準：GB4216 GB9115.8-88 JB/T79-94
結構長度：GB12221-89
壓力試驗：GB/T13927-92
安裝方式：法蘭連接
壓力等級：PN10、PN16、25
工作溫度：0℃～ 425℃

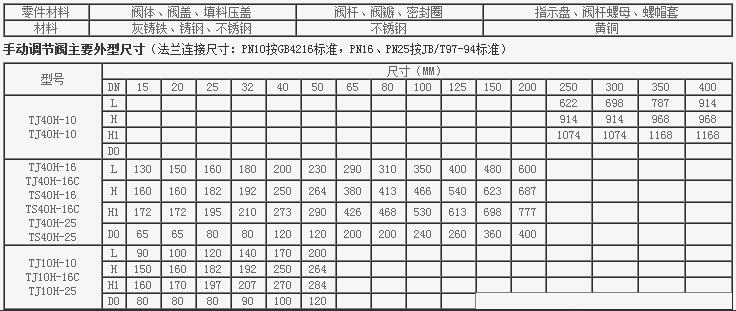

手動調節閥主要零件材料
